FlexPoint
Modular. Scalable. Simple.
Introducing FlexPoint FP5-M
FlexPoint FP5-M is the latest iteration of the FlexPoint series.
With FP5-M we provide an ultimate tool for managers and engineers to help them unlock the true productivity and quality potential of their production-lines & work-stations.
​​
45 % lower Price than FP4 series
Up to 20 times faster than FP4 series
Unlimited scalability
Modular network client structure
OEE (Overall equipment efficiency)
FTT (First Time Through)
FPY (First Pass Yield)
Productivity & Line balancing
Avoid assembly mistakes
Cost of manufacturing
Cost of Quality & Nonrecurring
What is FlexPoint?
A Projector & Machine Vision based Assembly Guidance and Inspection System
a highly skilled and tireless assistant, so called “E-Engineer”
supervising each assembly station 24h a day
​
by using a Video & Picture camera, a Stopwatch,
an Assembly Instruction handbook and a Data logbook
to guide the worker through the assembly process,
to verify the correctness of each assembly step,
to point out problems and failures,
to measure and record the timing and quality results for every step,
to make quality pictures and process specific or full assembly
video for further analyses and quality assurance,
and instantly prepares reports of station performance and highlights best / worst
and provides 100% Traceability, including facts and evidence
to enable managers and engineers to improve productivity, efficiency and quality
FlexPoint is an All-In-One tool for all Process- Assembly and Quality Engineers and Management
Functionalities
Vision and Automation
Camera - Vision test capabilities
Cameras
Position and Location of Parts
Presence & Orientation of parts
Color & Brightness & Uniformity
Barcode Reading
Data matrix reading
'Light curtain' access-protection
FlexPoint FP5-M
FlexProj - Projector
Automation / Integration
FlexClients
I/O Signals (24V) & Relays (FlexIO)
OPC / UDP / TCP / ProfiNet/Bus / RS232
MES / MRP / Database Connectivity
Screwdriver Tightening & Sequence
Station configuration
Standard configuration and extension options
FlexOFL - Offline Setup Computer
​
FlexProj - Projector to show instructions
​
FlexPad - ReportViewer TouchPad
​

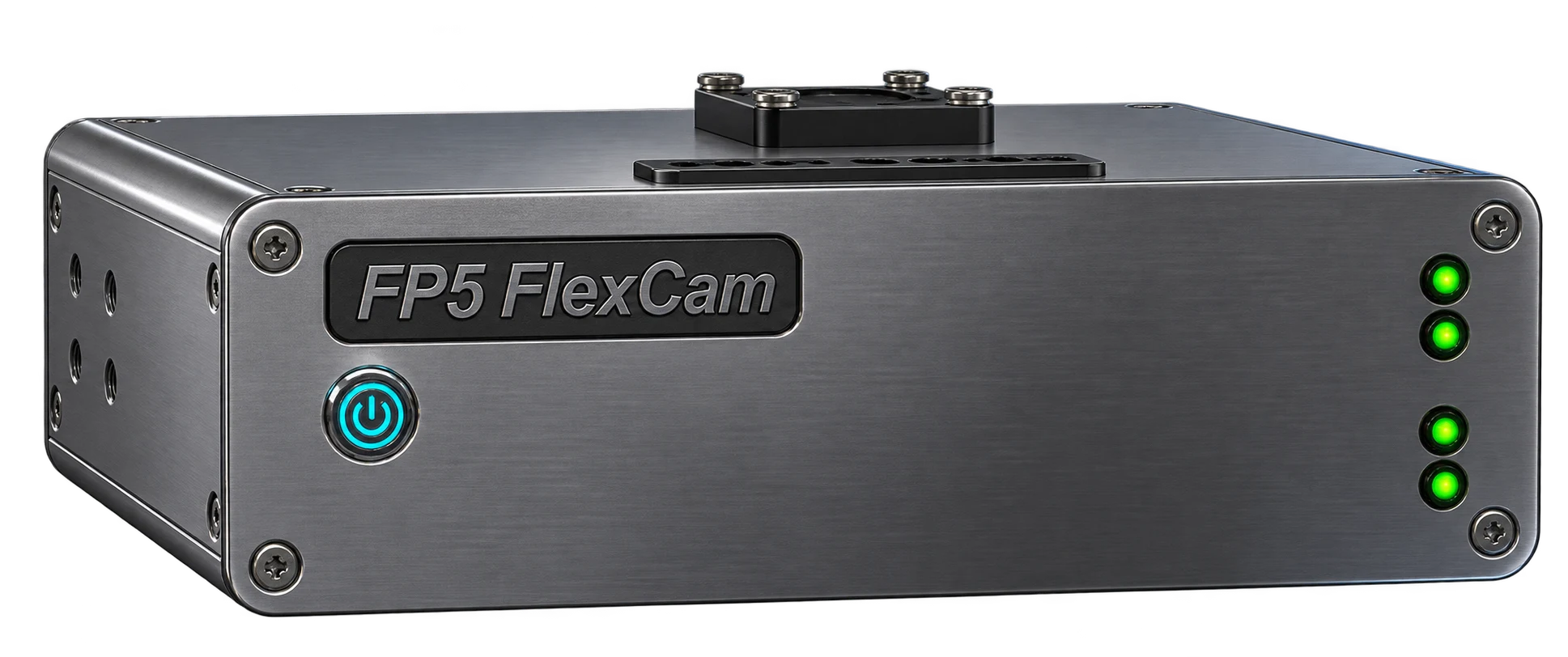

FlexCam - Machine Vision Cameras
​
FlexIO - 24V IN • 24V OUT • Relays
​
FlexPNPB - ProfiNet or ProfiBus Module
​
FlexView - Report Viewer Computer
Standard configuration
Covers >90% of all stations
1x FlexPoint FP5-M System
8x 24V IN • 8x 24V OUT • 8x Relay
​
3x Cameras (3mm Lens)
Test • Barcode • Light Curtain
​
1x RFID-Reader & KeyPad
​
1x Monitor 23"
For complex stations, such as End-Of-Line
Extension options
Assembly Stations • Tightening & Press Stations • End-Of-Line Stations • Packing Stations • Rework Stations
Request all configurations and options
Integration Process
Simplified and fast installation into existing or new work stations
Why FlexIPS?
Technical & Cost consideration
Management consideration
Differentiation
FlexPoint FP5-M in comparison to other vision systems
FlexPoint FP5-M goes beyond any other vision sensor/camera currently on the market by providing useful process-tools for OEE & Quality improvement
without any extra license cost.
